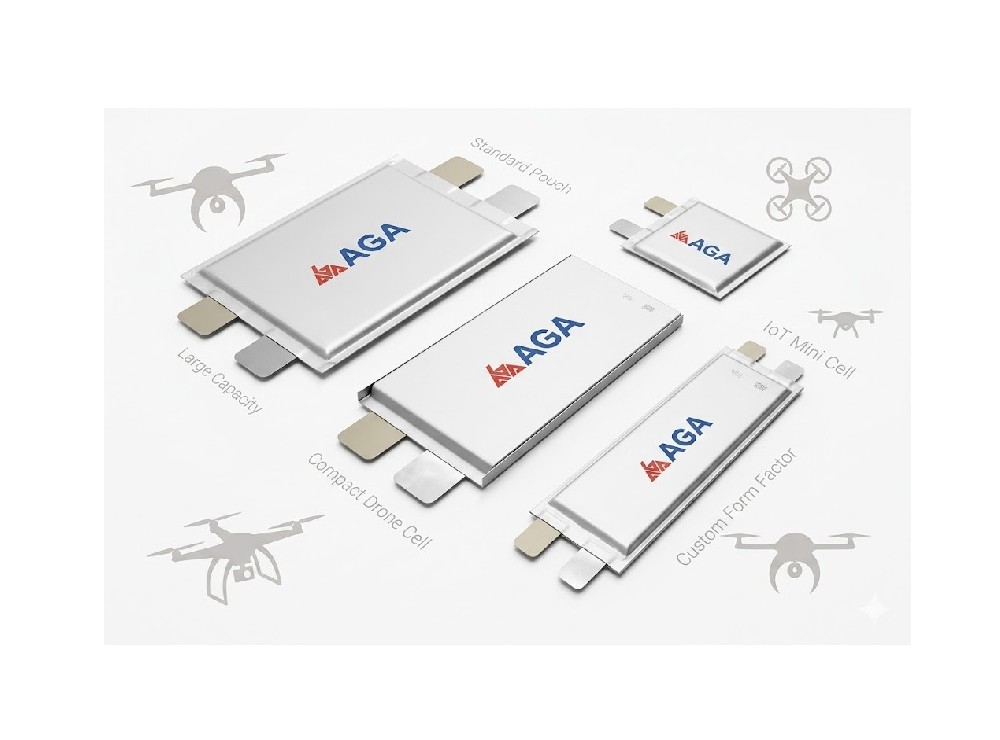

Solid State Cell equips a variety of features ranging from 280wh/kg to 450wh/kg.
Lightweight
Long product life cycle, low IR and high performance, its self-discharge rate is lower than the other traditional packs
High consistency on the quality of production
Safe, reliable, stable
Application: Big drones/ Mapping/ Agriculture Drone/ Surveillance/ Aerial photography/ Medical Delivery that requires long usage time and low discharge rate.
| Solid-State Cells in 350wh/Kg Energy Density Series | |||||||
| Cell(mah) | Capacity(AH) | Voltage | Thickness(mm) | Width(mm) | Length(mm) | Weight(g) | Cell energy density(wh/kg) |
| 12500 | 12.5 | 3.7 | 6.8 | 59.0 | 170.0 | 132 | 350.38 |
| 15000 | 15 | 3.7 | 8.2 | 59.0 | 170.0 | 158 | 351.27 |
| 18000 | 18 | 3.7 | 7.5 | 75.0 | 195.0 | 195 | 341.54 |
| 20000 | 20 | 3.7 | 8.3 | 75.0 | 195.0 | 216 | 342.59 |
| 22000 | 22 | 3.7 | 9.0 | 75.0 | 195.0 | 237 | 343.46 |
| 29500 | 28 | 3.7 | 10.2 | 75.0 | 174.0 | 305 | 357.90 |
| 30000 | 29.5 | 3.7 | 11.2 | 75.0 | 195.0 | 312 | 349.84 |
| 33000 | 33 | 3.7 | 14.7 | 88.0 | 210.0 | 350 | 348.86 |
| 36000 | 36 | 3.7 | 10.7 | 88.0 | 210.0 | 373 | 357.10 |
| 40000 | 40 | 3.7 | 11.2 | 88.0 | 210.0 | 405 | 365.43 |
| 52000 | 52 | 3.7 | 10.0 | 122.0 | 238.0 | 562 | 342.35 |
| 60000 | 60 | 3.7 | 11.3 | 122.0 | 238.0 | 645 | 344.19 |
| 67000 | 67 | 3.7 | 11.5 | 144.0 | 250.0 | 740 | 335.00 |
| 72000 | 72 | 3.7 | 9.2 | 150.0 | 289.0 | 771 | 345.53 |
| 80000 | 80 | 3.7 | 10.3 | 150.0 | 289.0 | 862 | 343.39 |
| Solid-State Cells in 400wh/Kg Energy Density Series | |||||||
| Cell(mah) | Capacity(AH) | Voltage | Thickness(mm) | Width(mm) | Length(mm) | Weight(g) | Cell energy density(wh/kg) |
| 33000 | 33 | 3.7 | 11.3 | 75.0 | 190.0 | 312 | 391.35 |
| 40000 | 40 | 3.7 | 10.5 | 88.0 | 210.0 | 360 | 411.11 |
| 47500 | 47.5 | 3.7 | 12.0 | 90.0 | 215.0 | 447 | 393.18 |
| 50000 | 50 | 3.7 | 8.8 | 122.0 | 238.0 | 475 | 389.47 |
| 72000 | 72 | 3.7 | 9.2 | 152.0 | 289.0 | 665 | 400.60 |
| 80000 | 80 | 3.7 | 10.0 | 152.0 | 289.0 | 735 | 402.72 |
